70 cm Repeater Kranenburg

DB 0 KRA

TX 438.875 Mhz / RX 431.275 Mhz

Loc: JO 31 AS / Antenna Level 49 Meter ASL

TX Power 7 Watt ERP / ANT: Diamond X-50N

News:

* 26.03.08 Bandpass Filter build in the Receiver antenna way, receiver sensitivity has increased

* 27.03.08 TX Output power increased from 3 watt to 7 watt.

* 17.04.09 Repeater temporary out of service, problems because of instable Output Power.

* 15.06.09 Second Repeater unit now in use with 4 Watt erp ( Motorola GM1200 RX /

Teletron Condor 46 TX and Cellwave Duplex-Filter and WX-Repeater Controll

* 01.02.10 Second Repeater unit now in use with 7 Watt erp ( Motorola GM600 RX /

Motorola GM600 TX and Cellwave Duplex-Filter and WX-Repeater Controll only used as cw-callsign-generator and dtmf controll, no 1750 hz controll

CModulation RX Flat out and TX Flat in Repeater is Carrier Controlled

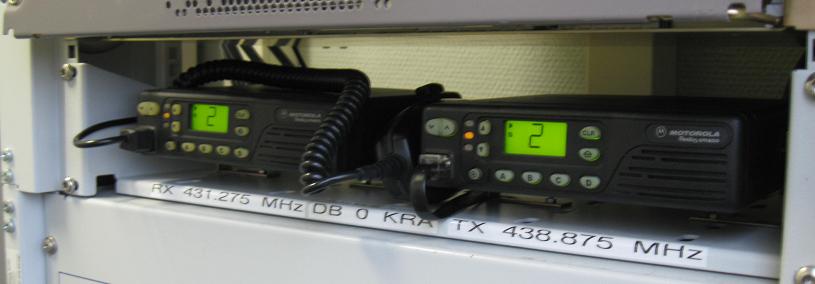

Foto Repeater 2:

Controll: Michel Boon, DG1ELO, Phone: 0049-1722110294

e-mail: DG1ELO@darc.de
